September 1, 2009

Searching for the Extreme: Richard Vandersteen of Vandersteen Audio: Part One


Richard Vandersteen and his wife Eneke at CES 2009.

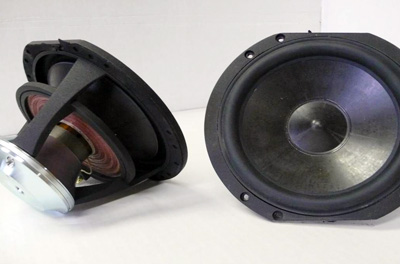

Vandersteen’s 7.25" Scan-Speak Illuminator midbass driver, featuring an aerodynamic neodymium magnet system and proprietary cone of carbon-fiber-and-balsa composite.

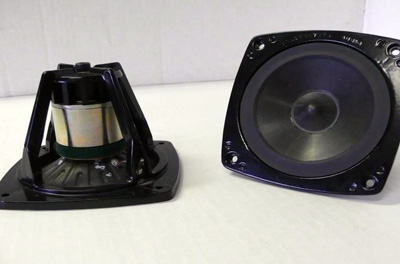

Vandersteen’s open-basket 4.5" midrange driver (patent pending), now incorporating the carbon-fiber/balsa composite cone.

Richard Vandersteen is the founder, principal, and guiding light behind Vandersteen Audio. For the past 33 years, Vandersteen Audio has provided sonic enjoyment to audiophiles and music lovers throughout the world. Given that more than 250,000 Vandersteen Model 2 loudspeakers, in their various iterations, have been sold to date, it’s arguable that no other individual has had a larger impact on the world of high-performance audio than Richard Vandersteen.

For the past ten years, Vandersteen has been on a quest to create the ultimate drivers for a new statement speaker system, his Vandersteen Model Seven. Shown to the public for the first time at the 2009 Consumer Electronics Show, the prototypes of the Seven made quite an impact. I visited the Vandersteen Audio design and production facility in Hanford, California. There I watched the new drivers’ cones being made, and Model Seven cabinets being assembled. The highlight of the day, however, was listening to album after album through the Model Sevens on Richard and Eneke Vandersteen’s reference system, then discussing with Richard the technical aspects of his flagship. My Dictaphone was on; here is our conversation.

Pete Roth: Vandersteen Audio has focused extensively on driver technology through much of its history, but the Model Seven seems to explore new territory. What are your thoughts about the driver technology you’re working with in the Seven?

Richard Vandersteen: It’s always been my goal to have -- we call it "perfect piston" -- to have perfect piston operation at least an octave beyond the frequency range we want the driver to work in. In a perfect piston, all parts of the diaphragm -- the cone -- are moving exactly in unison, from the edge all the way to the voice-coil. Attached to such a cone, the voice-coil can in turn energize the air in the room exactly as it is intended by the driver’s magnet system and the current coming from the amplifier.

To achieve this is incredibly demanding -- very, very difficult. Not so much for a midbass woofer, because if you’re crossing over at 600 or 700Hz, you’re only looking at needing good behavior to a couple of kHz. (Our first breakup mode in our new midbass woofer is actually around 10kHz, so that driver easily achieves our perfect piston requirements to about four octaves out.) But, with regard to the midrange, because we use time- and phase-correct crossovers (first-order filters), by crossing over at approximately 5kHz we’d need a midrange to have good behavior to 10kHz -- and preferably, as that is just one octave, [we] would like to have more than that. In our case now, the midrange driver’s first breakup is at 15kHz, which is well out of the way, is well attenuated, and without high "Q" -- it is low "Q" -- with not that high of a peak to begin with.

With other materials -- aluminum, for example -- it’s not uncommon to have the "Q" of the peak be very narrow, yet 15-20dB in amplitude. This is very difficult to deal with, and you are then forced to use very steep filters that ring like dinner bells all by themselves, to compound the ringing that is in the diaphragm or the driver. To use first-order filters to try to notch out a peak like that, so narrow in "Q" and high in amplitude, is virtually impossible to do passively, which is our preference.

PR: So with regard to your new drivers, and the patent pending behind them, the most unique story lies in their balsa-wood cores. Why, in a nutshell, did you settle on balsa as the core material for the Model Seven’s midrange and midbass cones?

RV: Because its compressive strength is the single strongest material by weight available, and it also happens to be a very good damping agent for resonance control.

PR: Explain the particular type and grade of balsa you use.

RV: We use the balsa in an end-grain orientation, where it has its best compressive strength. Balsa wood is available in all different weights, graded by weight in pounds per cubic foot. Balsa wood can range all the way from 3.5 pounds per cubic foot to 20 pounds per cubic foot. We buy nothing but the "ultra-lightweight" grade, but there is very limited supply. From an entire container that comes in from Ecuador, there may be only 3 or 4 cubic feet of the ultra-lightweight material. All of the balsa we use in the midrange cone is 4.5 pounds per cubic foot or less. For the 7.25" midbass driver, we use the material graded between 5 and 6 pounds per cubic foot.

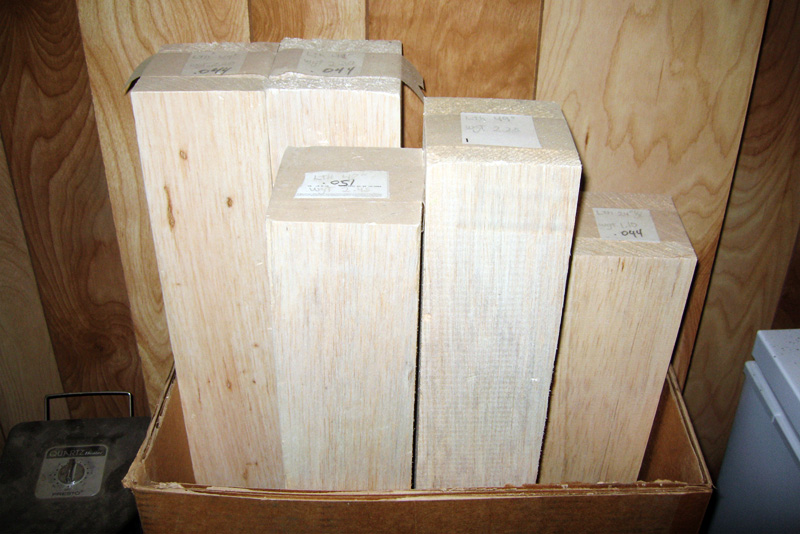

4" x 4" blocks of ultra-lightweight balsa wood awaiting processing.

PR: How much balsa do you need to process to get what you need?

RV: We start off with way more than we ultimately need, given the difficulty of machining it. Through our patented process, we stage the various steps of machining in order to handle it. We end up throwing 90% or more of the material away. But each midrange starts with a 4" x 4" x 1.25" piece, from which the cone is machined out. We segment four pieces together to create the 6" x 6" x 1.5" block from which the midbass cone is machined.

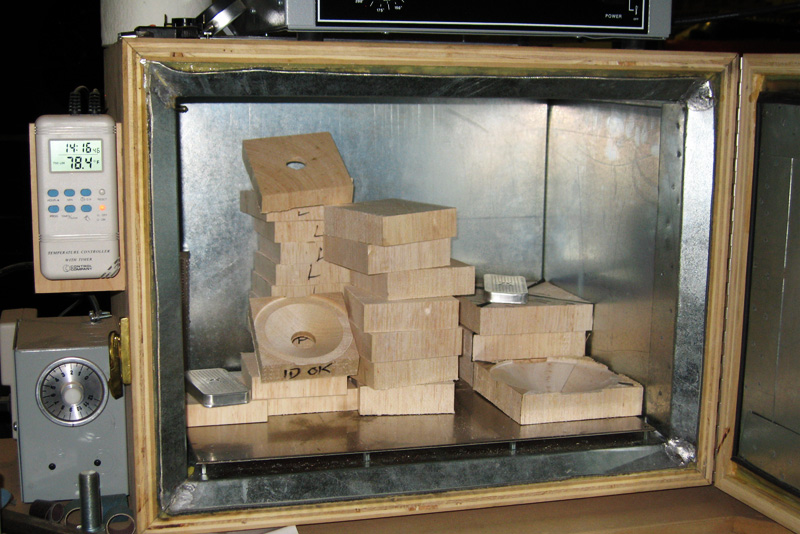

Balsa cut into 4" x 4" x 1.25" blocks, from which the driver cones are machined, "baking" in a special oven to remove all residual moisture -- a necessary step to ensure proper lamination of the cone skins of ultra-high-modulus carbon fiber.

PR: How did you identify balsa as a material to use?

RV: From my airplane hobby, really, knowing that balsa was incredibly strong. At first, I didn’t realize how well balsa would work in a constrained-layer-damped scenario, but I did know that it was very lightweight. As it turns out, its compressive strength at those light densities is unmatched by the alternatives. For example, the balsa graded at 4.5 pounds per cubic foot has a compressive strength of 680psi, while Rohacell of the same weight per cubic foot has a compressive strength of just 215psi. While these materials’ compressive strengths increase with density, Rohacell’s compressive strength nevertheless tops out at about 500psi, well short of the balsa we use. And when heavier core materials are used, much of the benefit of the increased compressive strength is merely offsetting the weight penalty incurred. So the balsa is clearly superior.

PR: What other options for materials did you explore?

RV: I’ve been experimenting with the creation of these cones for going on ten years now, so I’ve looked at all kinds of materials. I investigated so many different structural foams -- extensively used in the aircraft industry, in particular -- as well as all of the various honeycomb materials (Nomex, Hexcell, etc.), which are oriented like a beehive’s cells. Many of these have good strength, but in high-vibration environments can be very difficult to bond a skin to without weight getting in the way, as they necessitate excessive epoxies in the layup in order to completely bond the skin to the ends of the materials. Under long-term destructive testing of such alternative materials we saw a lot of delamination problems, although some have been effectively used in the audio industry, primarily in woofers.

PR: As a core material, how different is balsa from Rohacell, which has found multiple uses in audio?

RV: Rohacell is a structural foam that has become quite common in the audio industry and, obviously, the aviation industry, from which it first gained notoriety. In fact, I used Rohacell extensively in building my airplane. Nevertheless, I measured the compressive strength of balsa to be about three times that of Rohacell. You see, the function of the core material in a carbon-skinned composite sandwich is not simply to hold everything together (to get a spacing between the front and the back carbon layers), but also to form the truss. It is through this truss that you get the desired rigidity. In order for that to be obtained and optimized, it needs to be lightweight and have excellent compressive strength.

Balsa has a much greater anti-resonant quality than Rohacell, other structural foams or the honeycomb materials. As a matter of fact, I’ve just learned that the new Corvettes use balsa and carbon fiber for the floor panels, and while I’m sure it has something to do with weight (although it’s not a race car), I read that the main reason General Motors engineers it into the Corvette is to attenuate road noise -- in other words, for its damping characteristics.

PR: How do balsa’s antiresonant qualities manifest themselves in the drivers?

RV: By its low "Q" resonance. A very high "Q" resonance simply means that there is a narrow band of frequencies, but very steep and with high amplitude. A low (also called a wide) "Q" resonance would involve more frequencies, but the amplitude is considerably lower. Of course, if a resonance has no bump at all in its response (no amplitude), that is considered "critically damped," and you can approach that with balsa. On its own, balsa results in a very damped resonance of 4-5dB. It looks like a low foothill, not a mountain, and is very easy to deal with, especially when it’s way out there, over an octave beyond the crossover point. We go ahead and notch the bump out with our crossovers anyway, to eliminate any residual effects of the resonance.

A lot of people don’t realize that common paper cones -- even sophisticated ones with some carbon fibers sprinkled in the matrix -- and plastic-type cones normally used in a 6.5" woofer or a 7.25" woofer, typically have their very early signs of resonance (entering into their first breakup modes) at as low as 300 or 400 cycles. Even at such low frequencies, the cones are becoming chaotic and no longer act as a perfect piston.

PR: What is the nature of your patent?

RV: Basically, the patent is about using a balsa core with carbon-fiber skins in a midrange cone -- defined as a cone 5" or smaller in diameter. It also includes some process elements, as they are rather unique -- but one never knows, as you go through the "pending" progression, how much of the actual process will be allowed to remain in the final patent.

PR: What different types of carbon fiber are there to choose from for the skins of the new cones?

RV: There are several common carbon-fiber types used in loudspeakers today. The first is the normal woven carbon fiber, which you see on car hoods these days -- on everything, really. In this standard type, the strands are woven up, over, and under in what are called tows or groups, and they cross at 90 degrees. That’s the standard carbon fiber that I used to build my airplane. It is used for lots of things today, and comes in different varieties: twills, weaves, 1K tows, 3K tows, 6K tows, etc.

Then you have the unidirectional-fiber type. Again, the fibers are all carbon, but instead of a weave, all of the strands lay in the same direction, so you have maximum strength in one direction and virtually no strength in the other direction. The lowest-cost alternative used in speakers today is a random fiber, called a veil, which you can get in various weights. The fibers are spun in totally random arcs and curves, going in all directions, and can be laid up in various layers. We played with that years ago. It was the first material we used and the easiest to work with, but not very stiff or strong, although it makes a good finish.

The other thing that matters with carbon fiber, whether you use a pre-preg or wet layup, is the modulus strength of the actual fibers. There is a lot of variation there. Standard carbon fibers have a modulus stiffness rating expressed as about 33 million psi. We’ve experimented with uni-fibers with 42 million, 60 million, and as high as 120 million psi. The present cone material we use is what is called "ultra-high-modulus" carbon fiber -- it’s very difficult to get, being used primarily in satellites.

Then there are various different epoxies or matrices that you hold this fiber together with. It is the available high-modulus binders with nanotubes that we utilize. Our tweeter dome also uses the ultra-high-modulus carbon fiber and high-modulus binders, with the carbon fibers laid-up and layered in a unique fashion to achieve the rigidity we are looking for, so that the inevitable first breakup mode occurs over an octave above audibility. So, although pretty bizarre, these materials and configurations are what it has taken in order to achieve a perfect piston at all frequencies with at least one octave of headroom, and preferably two octaves or more. This, in turn, allows our use of first-order filters -- the only option if you are making time- and phase-accurate speakers. The ultra-high-modulus fiber, high-modulus pre-preg variety that is in our cones is very expensive and very hard to get, but it really does the trick. When I asked the manufacturer who else uses the stuff, he told me it is only used in satellites and by this crazy speaker guy: me.

The only real problem with our resulting cones is the cost. The cones for the midrange driver cost something like $2000 a pair, which is basically an order of magnitude more than what otherwise-available, top-quality midrange drivers cost, with all subcomponents included. But the distortion is so incredibly low, there is just nothing like them.

End of Part One. Part Two will appear next month.

. . . Peter Roth
